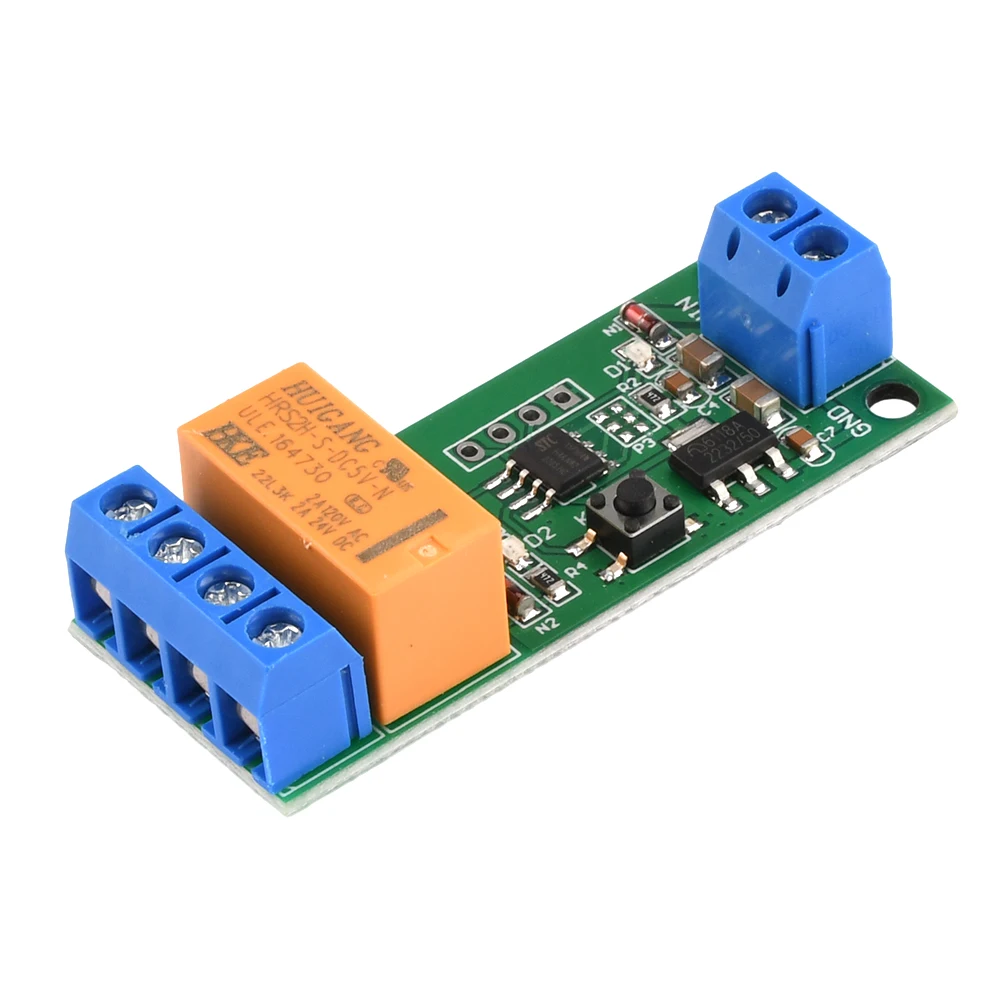

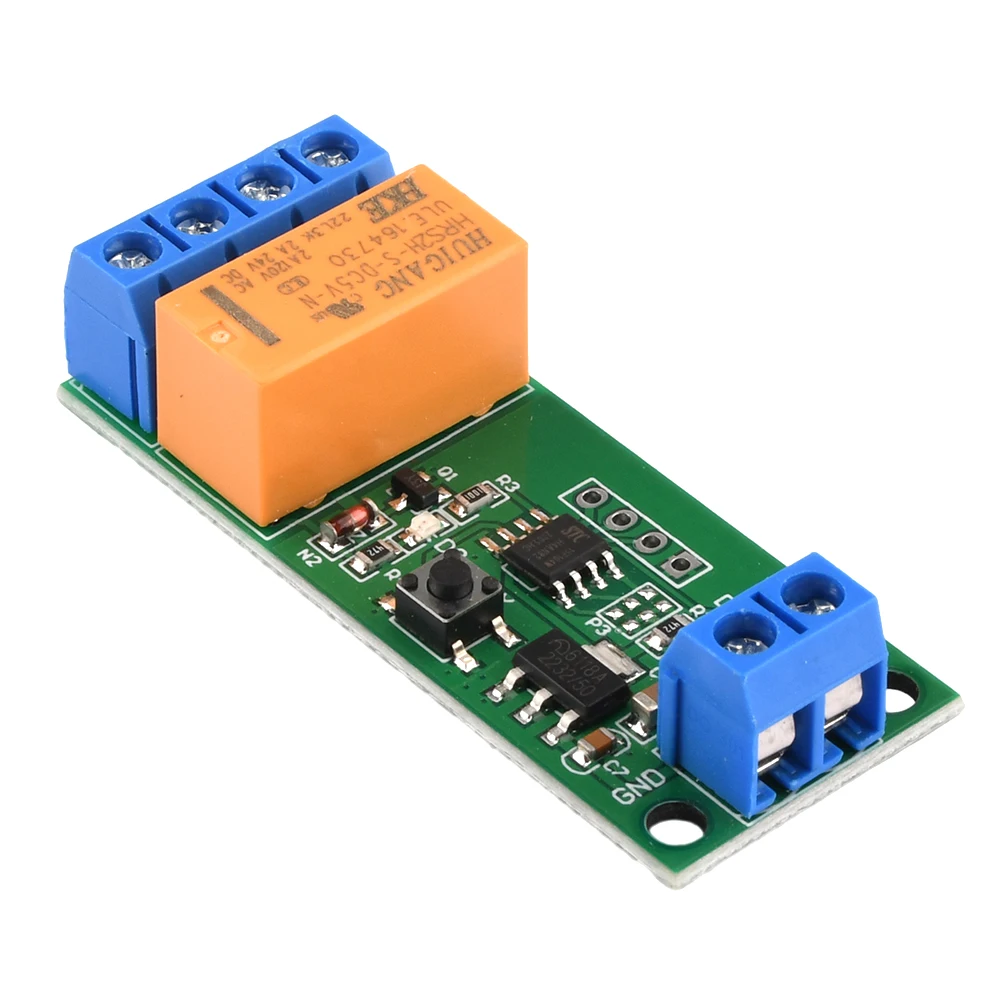

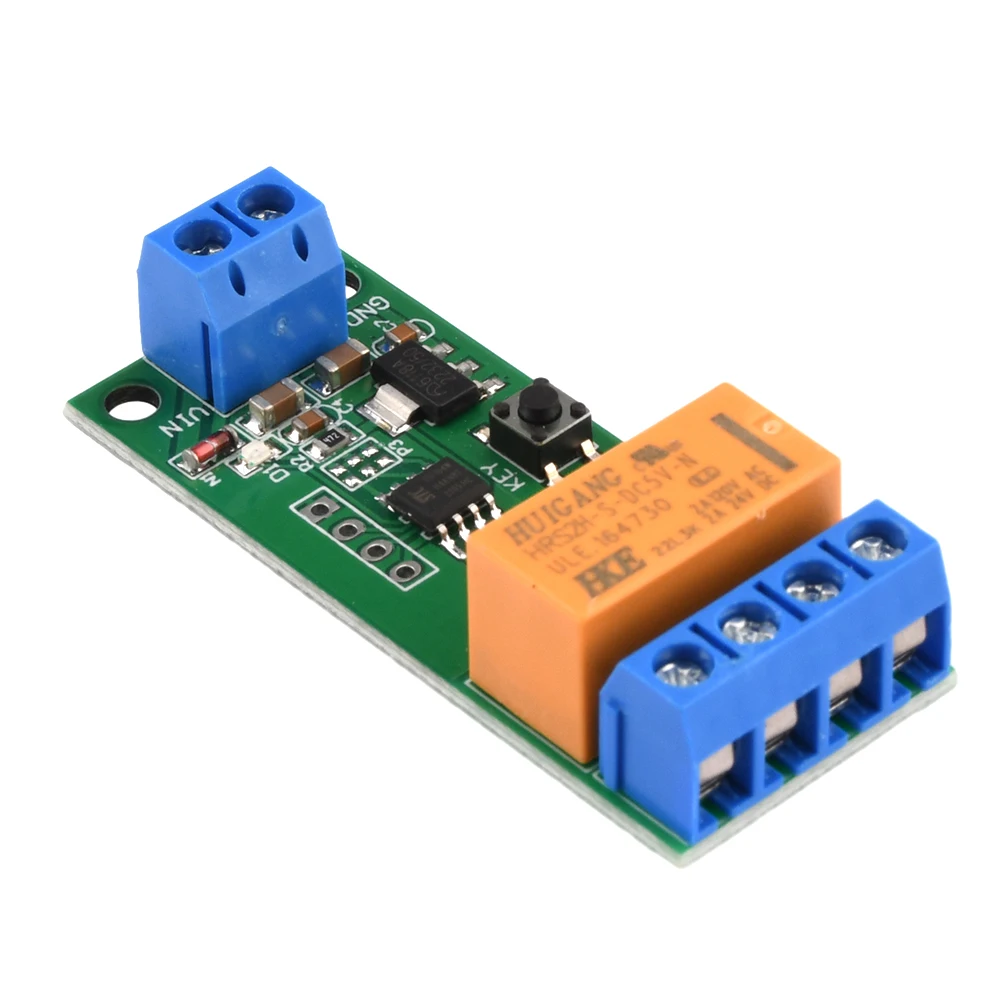

1. The use of high-quality materials is guaranteed

2. Stable performance and wide voltage range

3. Easy to use, easy to understand wiring

4. Exquisite and compact appearance

5. Wide range of applications, suitable for various industrial occasions


Product parameters:

Working voltage: DC 5-13V

Working current:

5V Forward rotation: 4ma; Reverse rotation: 36ma

12V Forward rotation: 6ma; Reverse rotation: 44ma

Load voltage: DC1-48V or AC 85-265V

Load current: maximum 2A

The maximum forward rotation time: 5000 seconds (40000 seconds can be reached by shorting the pad), step by 0.1 seconds

Maximum reversal time: 5000 seconds (up to 40000 seconds by shorting the pad), step by 0.1 seconds


Instructions:

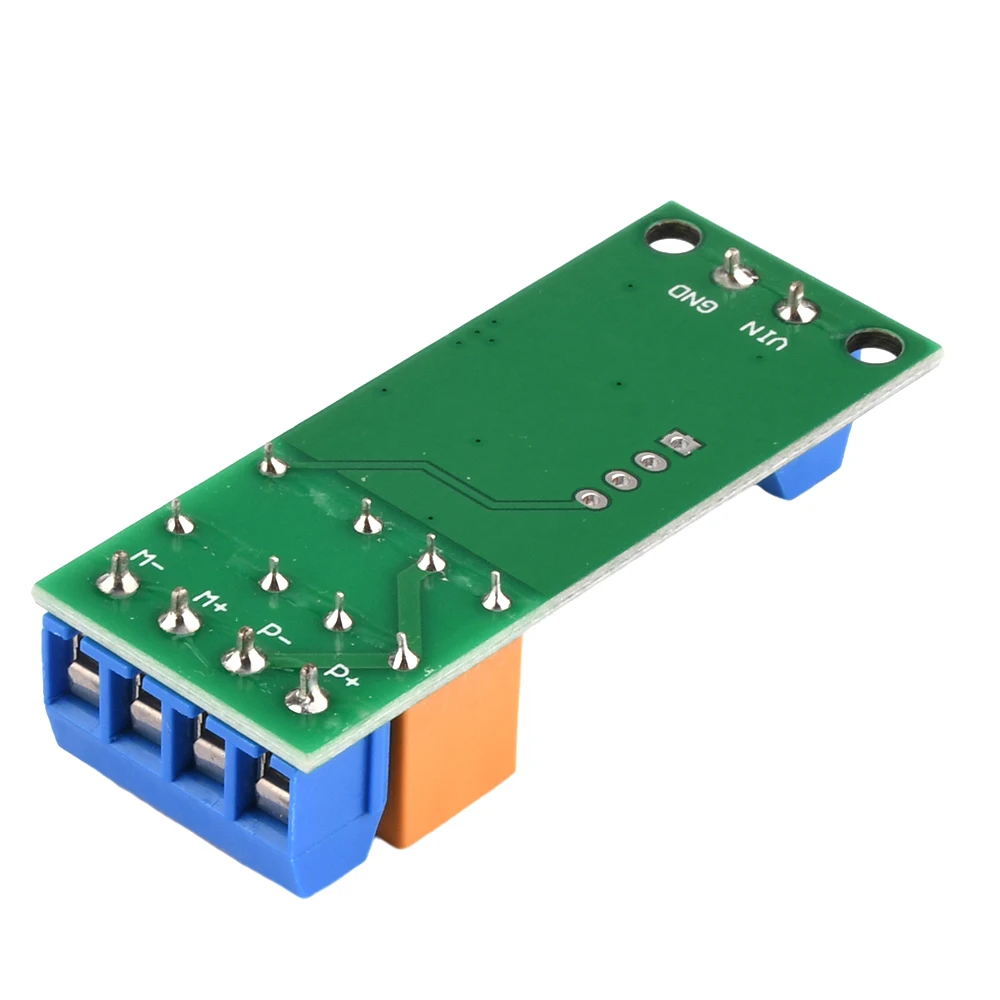

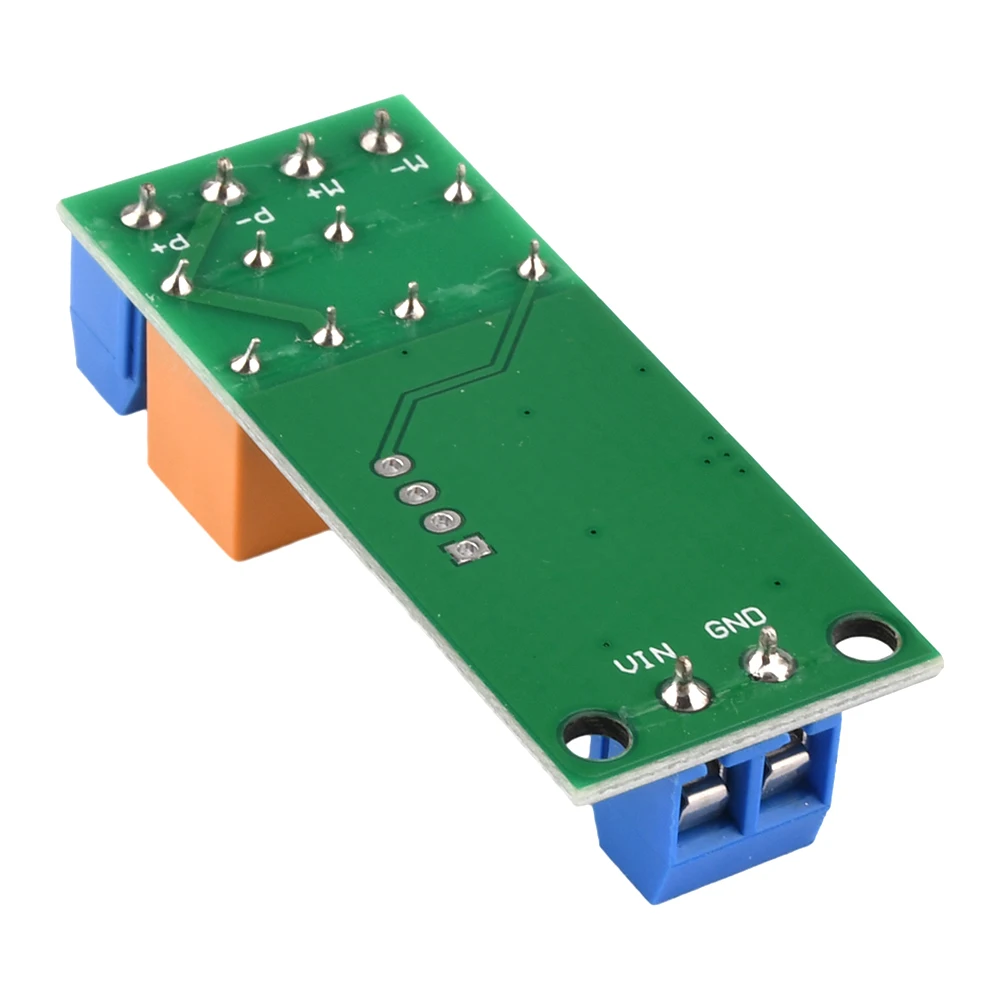

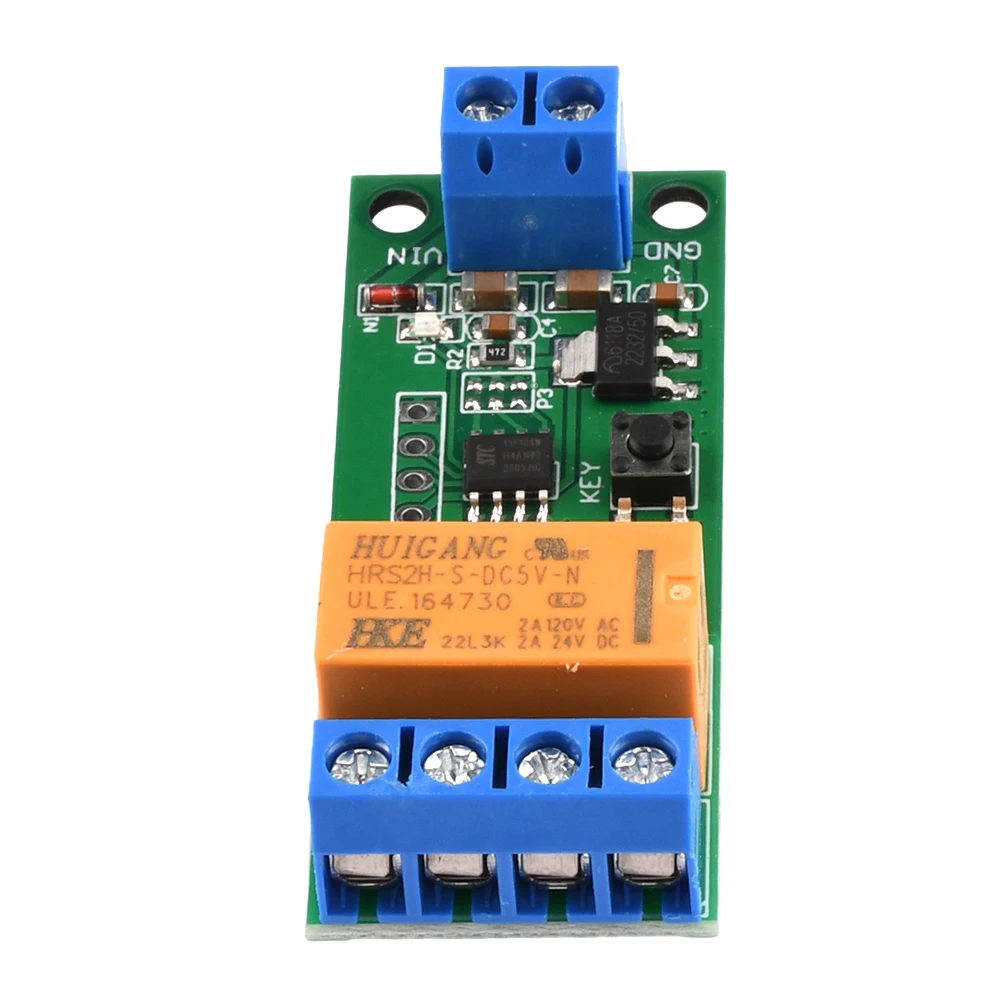

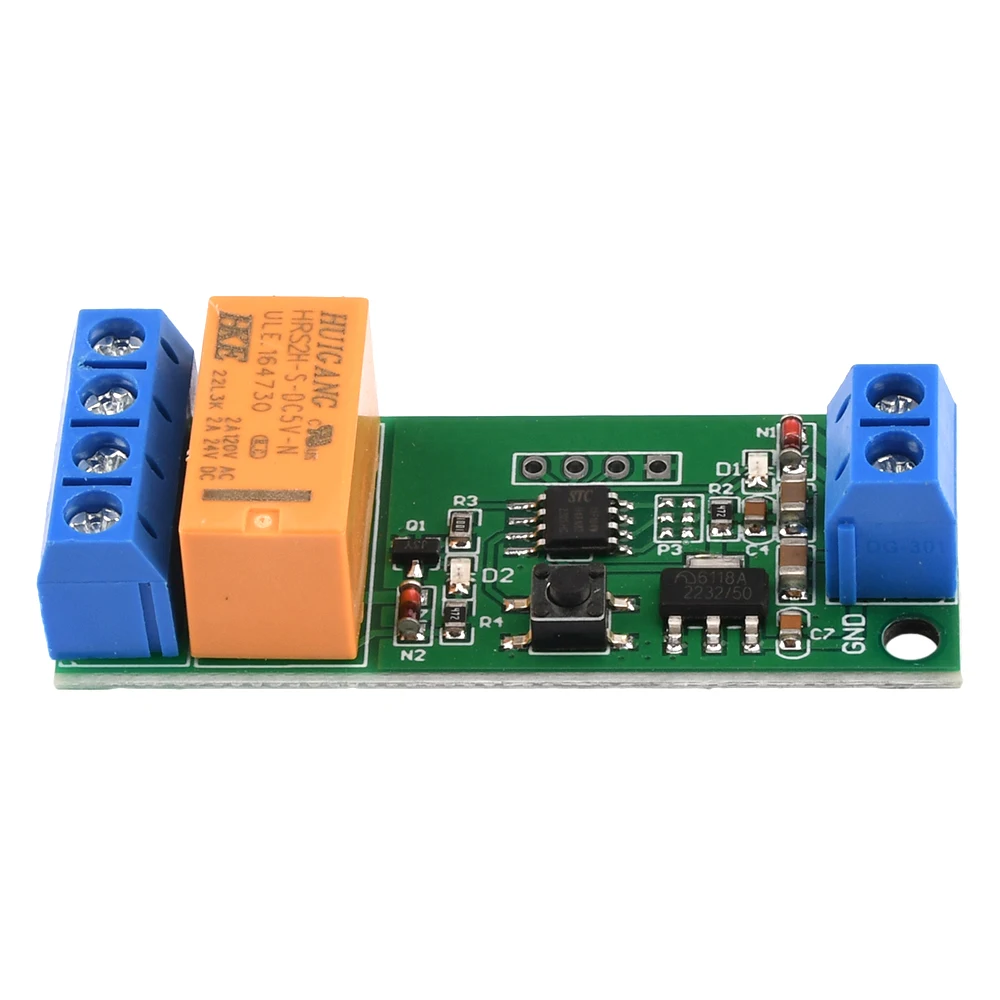

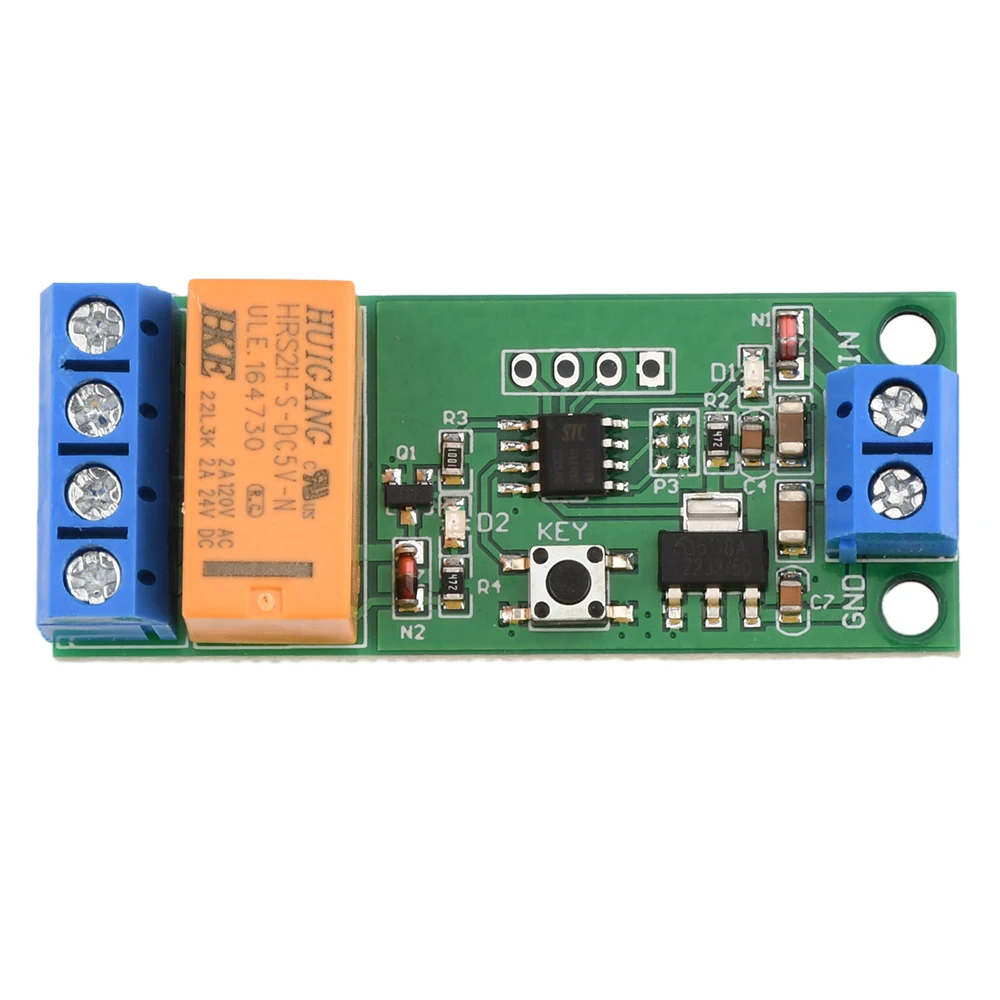

VIN is connected to the positive pole of the working power supply, GND is connected to the negative pole of the working power supply; P+ is connected to the positive pole of the motor power supply, and P- is connected to the negative pole of the motor power supply. M+ is connected to the motor input terminal 1 (the motor does not distinguish between positive and negative poles), and M- is connected to the motor input terminal 2. After power on, D1 flashes 3 times and then goes off, D2 goes off, M+ outputs positive, M- outputs negative, and the motor rotates forward; after a delay of T1, D2 lights up, M+ outputs negative, M- outputs positive, and the motor reverses; delay After T2 time, D2 goes out, M+ outputs positive, M- outputs negative, the motor rotates forward, and so on.

T1: Indicates the forward rotation delay time, the default is adjustable from 0.1 to 5000 seconds (stepping 0.1 seconds), and the delay can be set to 1-8 times through the pad (up to 40000 seconds)

T2: Indicates the reverse delay time, the default is adjustable from 0.1-5000 seconds (step 0.1 seconds), and the delay can be set to 1-8 times through the pad (up to 40000 seconds)


packing list:

Delay module*1

재질: 고품질 소재 사용
제품 할인: 경제적인 가격
유형 및 카테고리: PLC 주변 모듈
디자인 및 스타일: 컴팩트하고 우아한 디자인
사용 및 목적: 다양한 산업용 장치에 적합
적응 시나리오: 다양한 산업적 환경에서 사용 가능
형태 또는 크기 또는 무게 또는 수량: 작고 휴대가 간편
성능 및 특성: 2A 드라이브 전류, 5/6/9/12V DC 전압 지원
부품 및 액세서리: 딜레이 모듈*1 포함


|모터 방향전환 회로도|모터 방향 전환 회로|

**정밀한 모터 방향 전환 제어**
이 모터 방향전환 회로는 정밀한 모터 제어를 위한 필수 구성 요소입니다. 2A 드라이브 전류와 5/6/9/12V DC 전압 범위를 지원하여 다양한 DC 모터에 적합합니다. 시간 조절 딜레이 기능은 사용자의 필요에 따라 정밀하게 설정할 수 있으며, 이는 산업용 장치의 효율적인 작동을 보장합니다.

**사용자 친화적인 설계**
이 모터 방향전환 회로는 사용자 친화적인 설계로 인해 설치와 사용이 간편합니다. 간단한 연결 방법과 명확한 사용 설명서를 통해 사용자는 빠르게 모터의 방향을 전환할 수 있습니다. 컴팩트한 디자인은 장치의 설치를 용이하게 하며, 다양한 산업 환경에 적합합니다.

**장기간 안정적인 성능**
고품질 소재로 제작된 이 모터 방향전환 회로는 안정적인 성능을 제공합니다. 105℃에서의 발화 물질의 최대 함량이 적어 안전성과 내구성을 보장합니다. 또한, 최대 40000초의 딜레이 시간 설정이 가능하여 장기간 안정적인 작동을 보장합니다.
