Specification


  • Motor Type : Coreless Metal Brush
  • Gear Type : Titanium
  • Operating Voltage : Min 6.0 Max 7.4
  • Speed Range : Min 0.21 Max 0.17
  • Torque Range : Min 36 Max 44
  • Dimension : L 43.8 W 22.4 H 40
  • Weight : 79.0
  • Protocol : PWM

Product Description

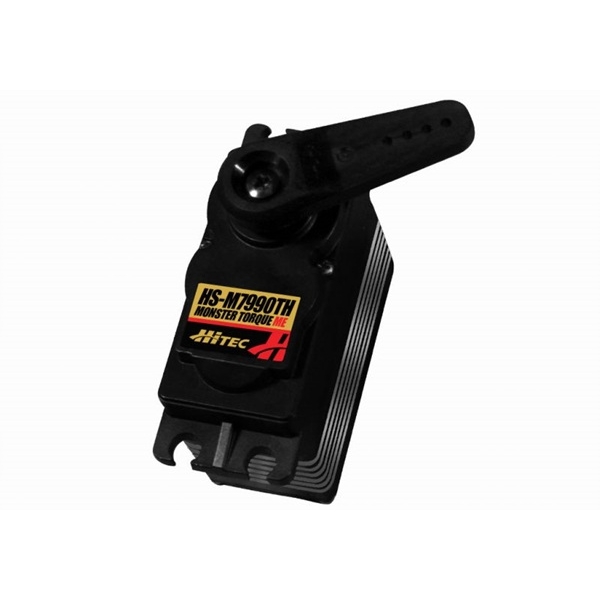

Hitec's most technologically advanced servo, the "Monster Torque" HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axialbushings.


Features

  • High Resolution Magnetic Digital Ecoder
  • G2.5 12 bit Digital Programmable Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Integrated Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
  • 10% larger than a HS-7955TG

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset
