Battery Shield

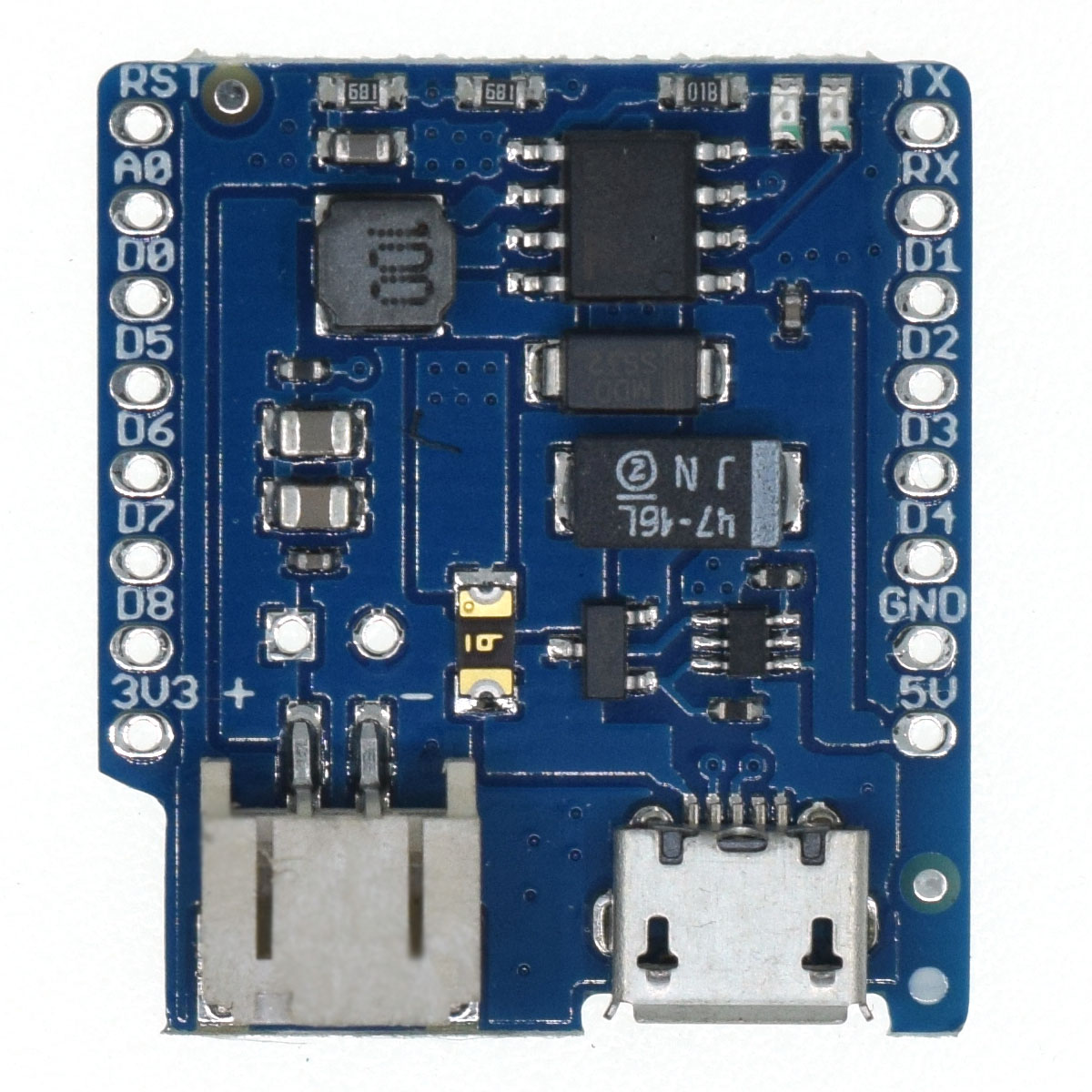

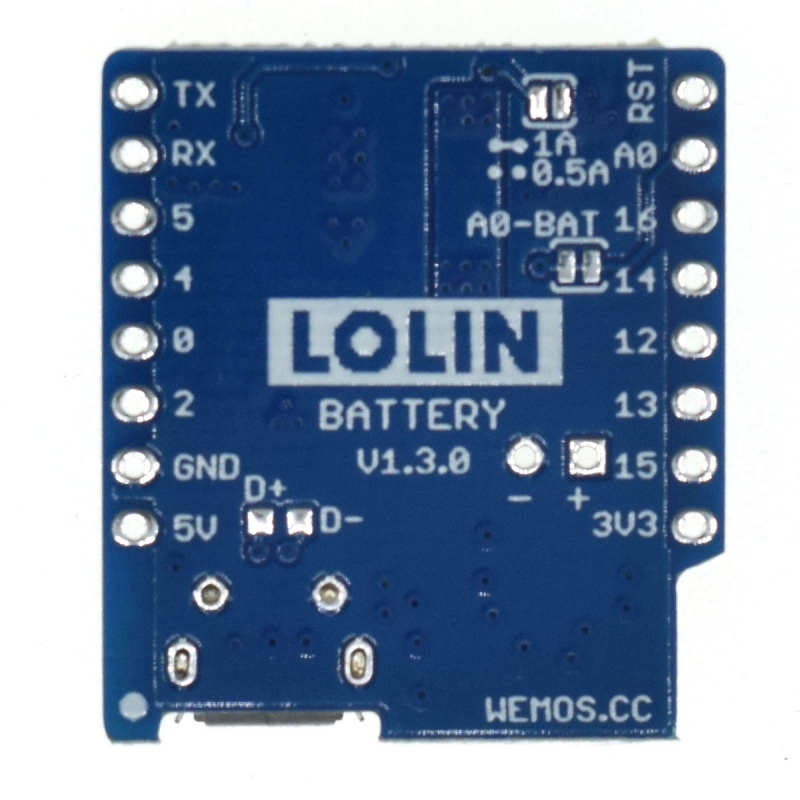

TOP_IMG BOTTOM_IMG

lithium (LiPo) Battery shield, charging & boost.

Features

  • Charging Voltage: max: 10V, recommend: 5V
  • Charging Current: max: 1A
  • Lithium Battery voltage: 3.3-4.2V
  • Boost Power Supply: 5V(max: 1A)

Pins

D1 mini Shield
5V Power Supply, 5V(max: 1A)
GND GND

Ports

PH2-2.0MM (Port 1) Connect to lithium Battery (normal 3.3-4.2V)
Micro USB (Port 2) Charging port (normal 5V)
Green LED lights when charging is completed
Red LED lights when charging
J1 setting max charging current, 0.5A or 1A.
J2 Connect battery to A0
