Description:

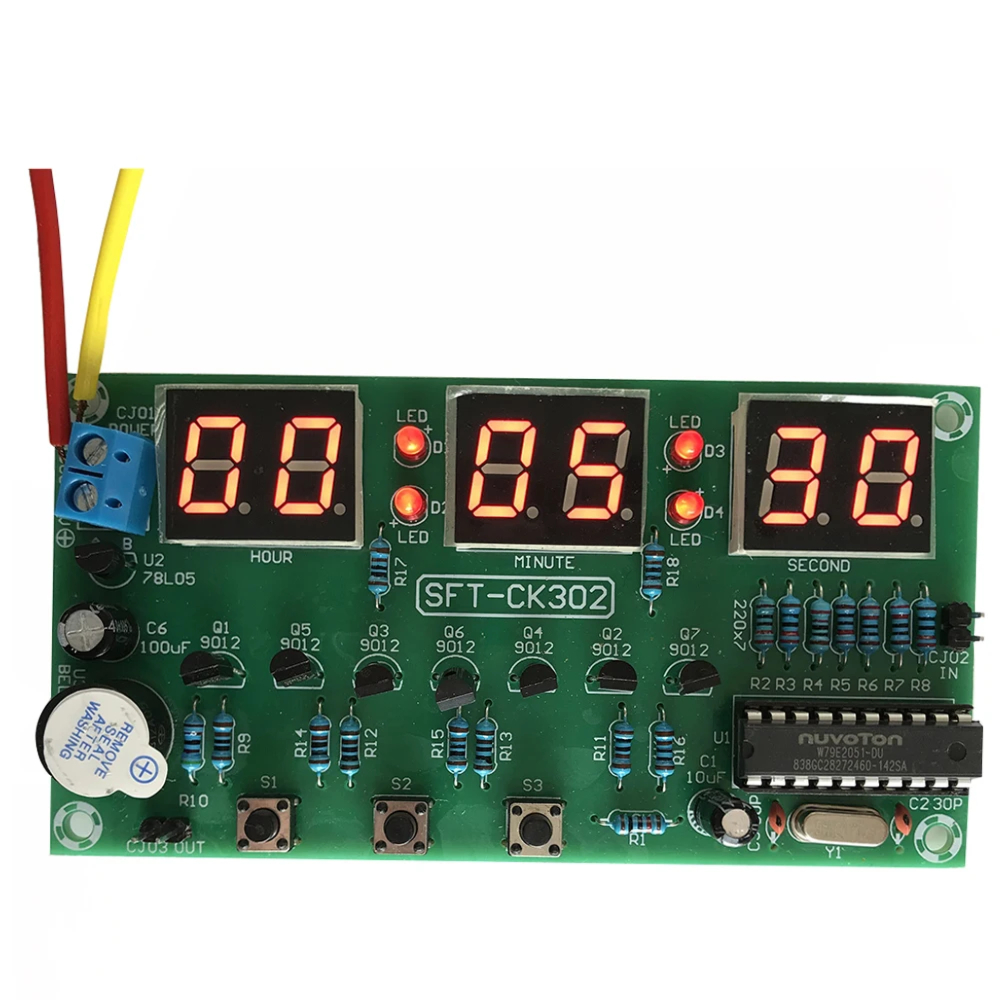

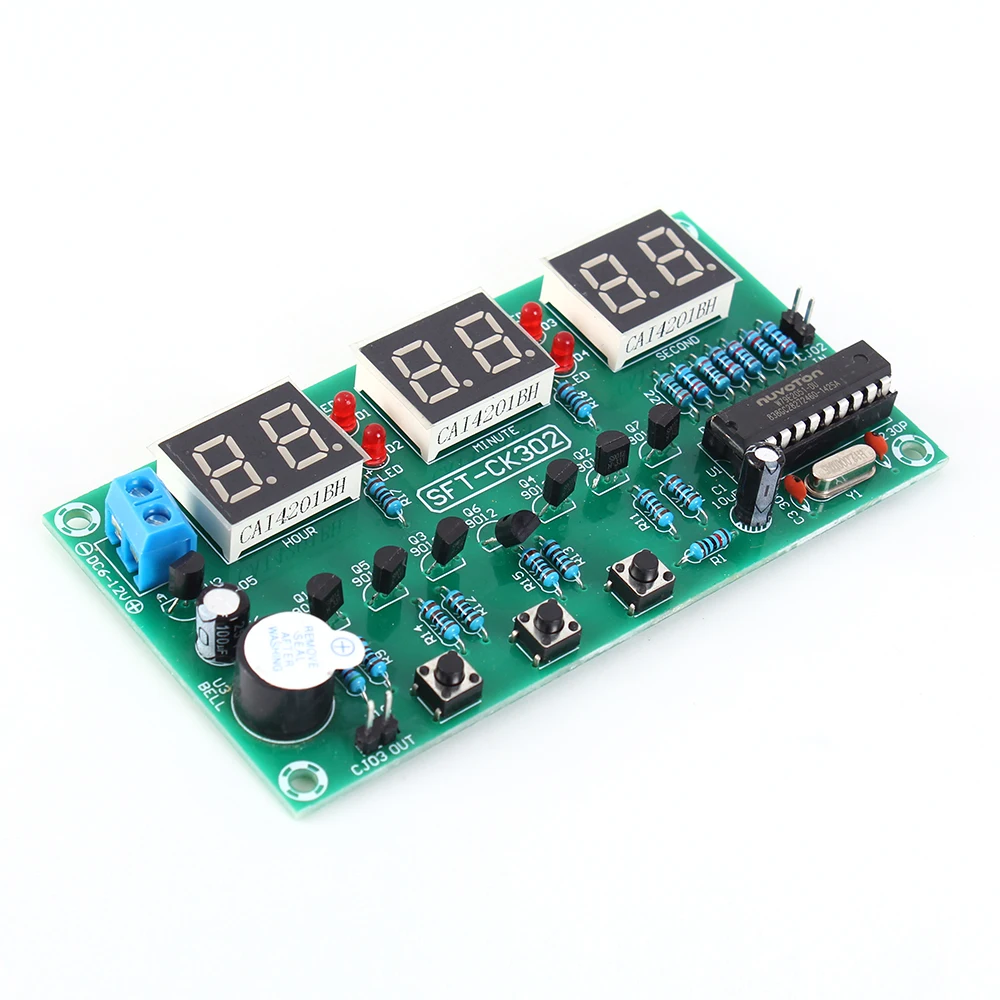

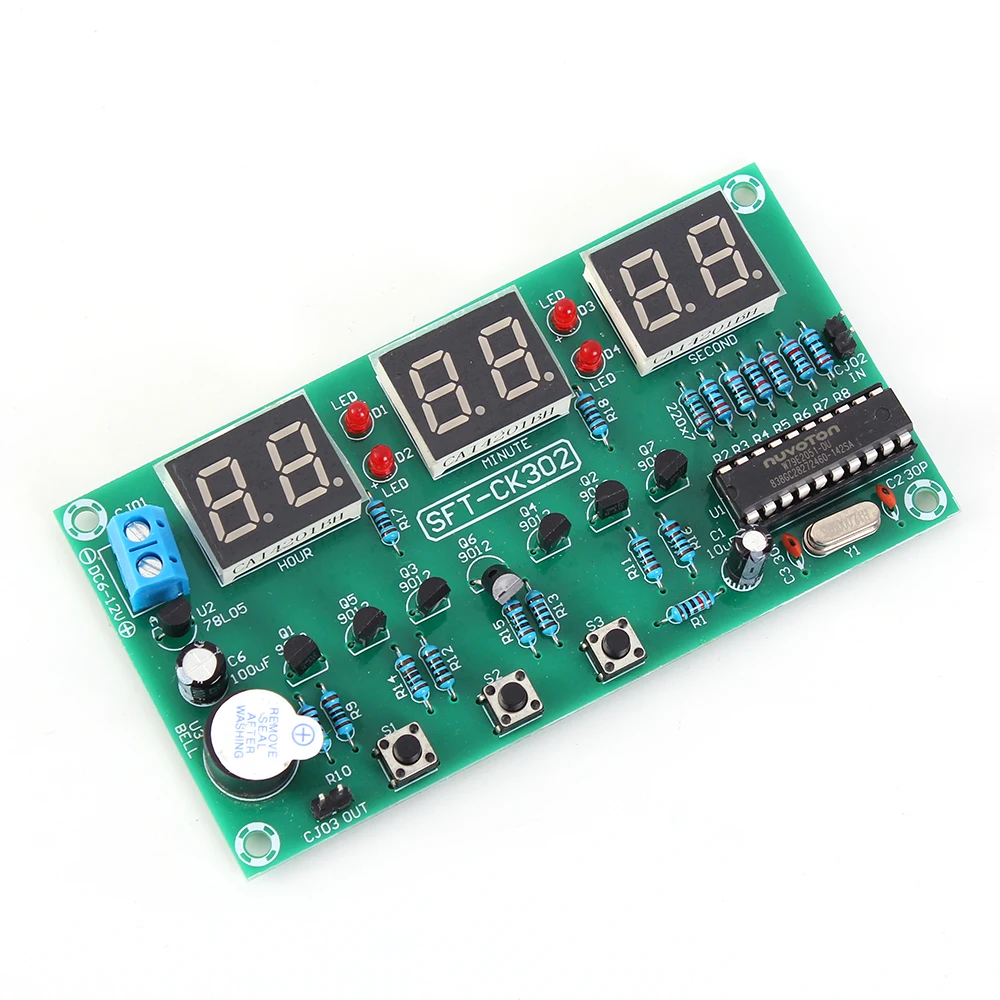

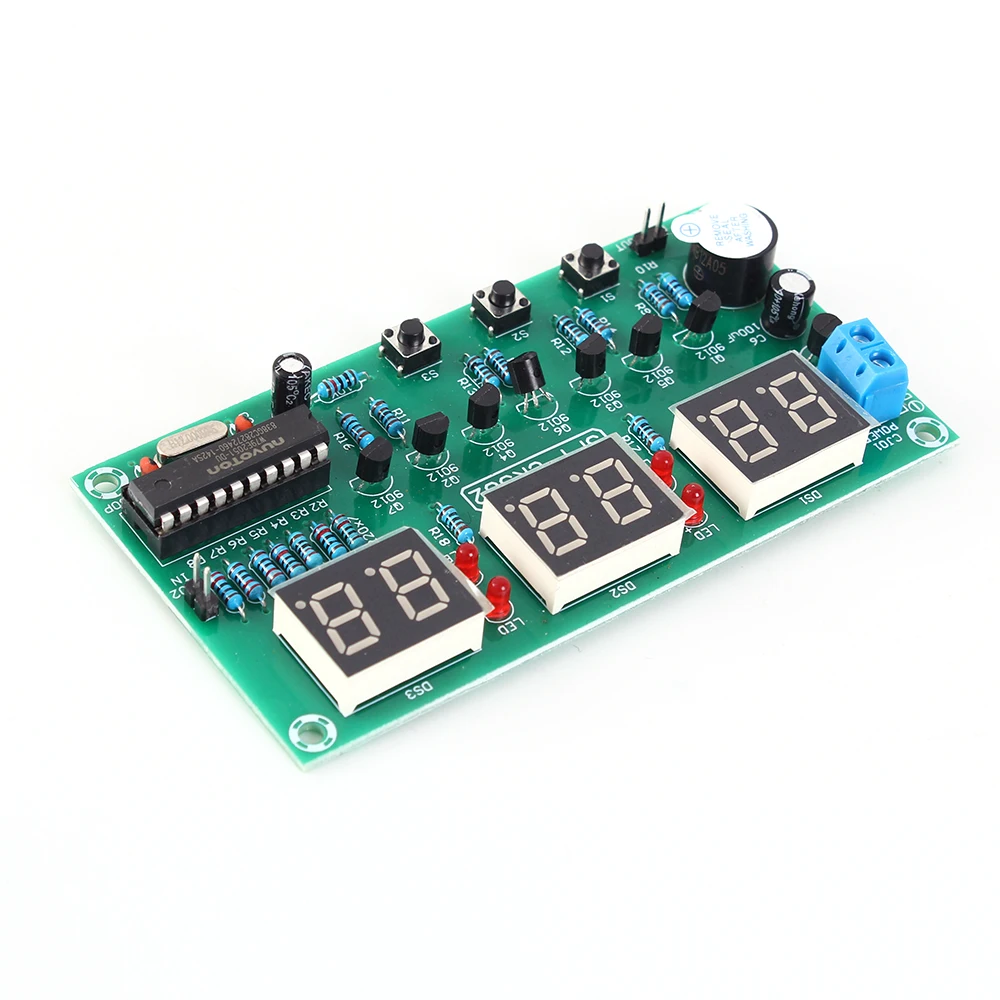

1>.Item Name:6Bit DC 6V-12V LED Electronic Clock Module

2>.Model:SFT-CK301

3>.Work voltage:DC 6V-12V

4>.Work current:35mA

5>.Display screen:0.4in Red 6Bit

6>.Work Temperature:-40~85 Celsuis

7>.Work Humidity:0%~95%RH

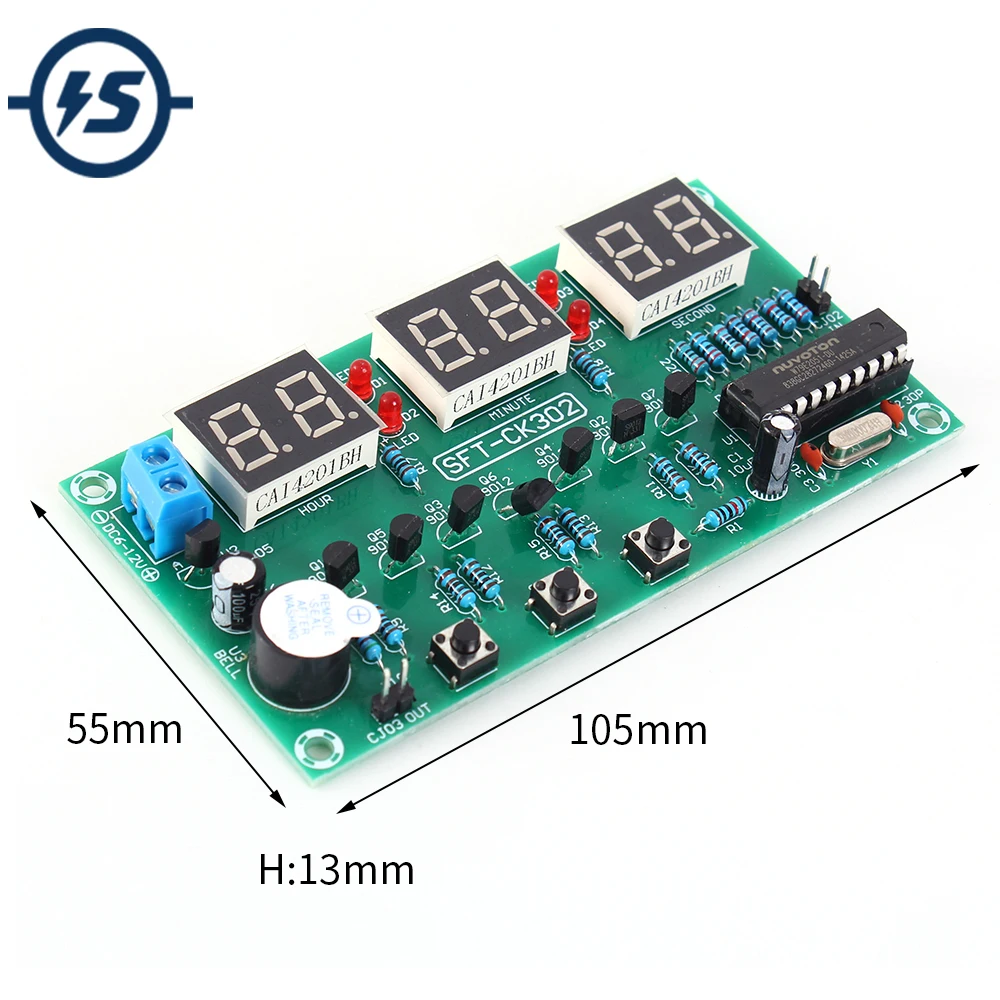

8>.Size:105*55*13mm

Function:

1>.Clock function

2>.Calibration function

3>.Alarm clock function

4>.Countdown function

5>.Stopwatch function

6>.Counter function

Instructions for use:

1>.Key Description:S1 is function selection button;S2 is function expansion button;S3 is increase button.

2>.Settings mode:Short press button S1 to set 6 functions.It will return to display mode is keep press button for more than 2 second.

3>.Clock function:Screen will display '10:10:00' after power ON.

4>.Calibration function:Short press button S1 once time.6Bit Digital Tube will flashing.Press button S2 to calibration hour.Press button S3 to calibration minute.Second cannot be calibrated.Press S1 return to normal display.

5>.Alarm clock function:Press button S1 twice times continuously.Screen will display '22:10:00' and ':' will flashing.Press S2 to set hour and S3 to set minute.Second cannot be set.It will display '-:-:-' if hour more than 23.It means turn OFF alarm clock function.The alarm is a buzzer for 3 seconds.

6>.Countdown function:Press button S1 three times continuously.Screen will display '0' and others will OFF.Press S2 is used to move value from right to left such as 1 to 10.Press S3 to increase 1.When S2 is pressed for the sixth time, the countdown will start automatically.Enter the countdown set function again and stop counting down when press S2 again.

7>.Stopwatch function:Press button S1 four times continuously.Screen will display '00:00:00' .Press S2 to start the stopwatch and Press S2 again to stop the timer. When the timer is stopped, press S3 to clear the stopwatch.

8>.Counter function:Press button S1 four times continuously.Screen will display '00:00:00'.When S2 is pressed, the counter is incremented by 1, and when S3 is pressed, the counter is cleared.

9>.CJ02 Male pins are input terminal.It is used to drive buzzer.

10>.CJ03 Male pins are output terminal.It will output low level when buzzer is OFF.and output high level when buzzer is ON.

Note:

The color of the LED indicator will change randomly, white or red. Please consider carefully before purchasing.

Package:

1pc 6 Bit DC 6V-12V LED Electronic Clock Module
