Features:

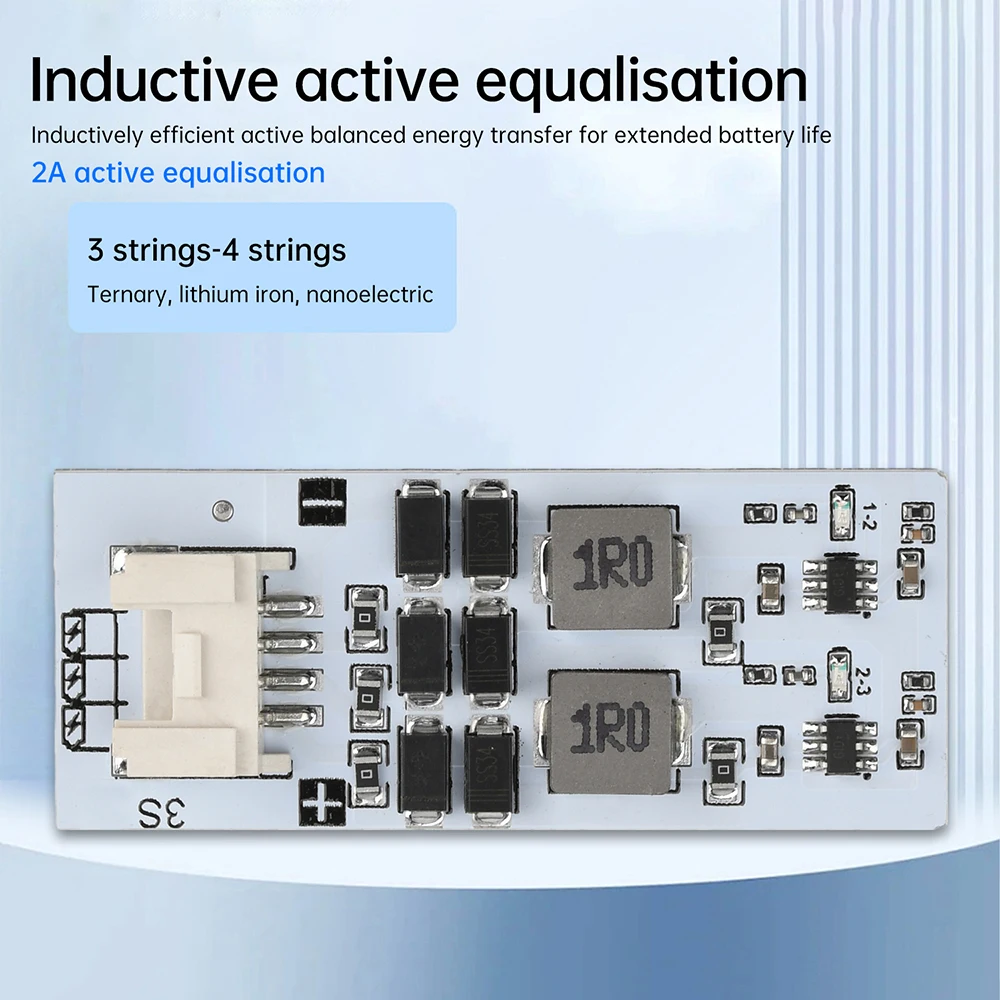

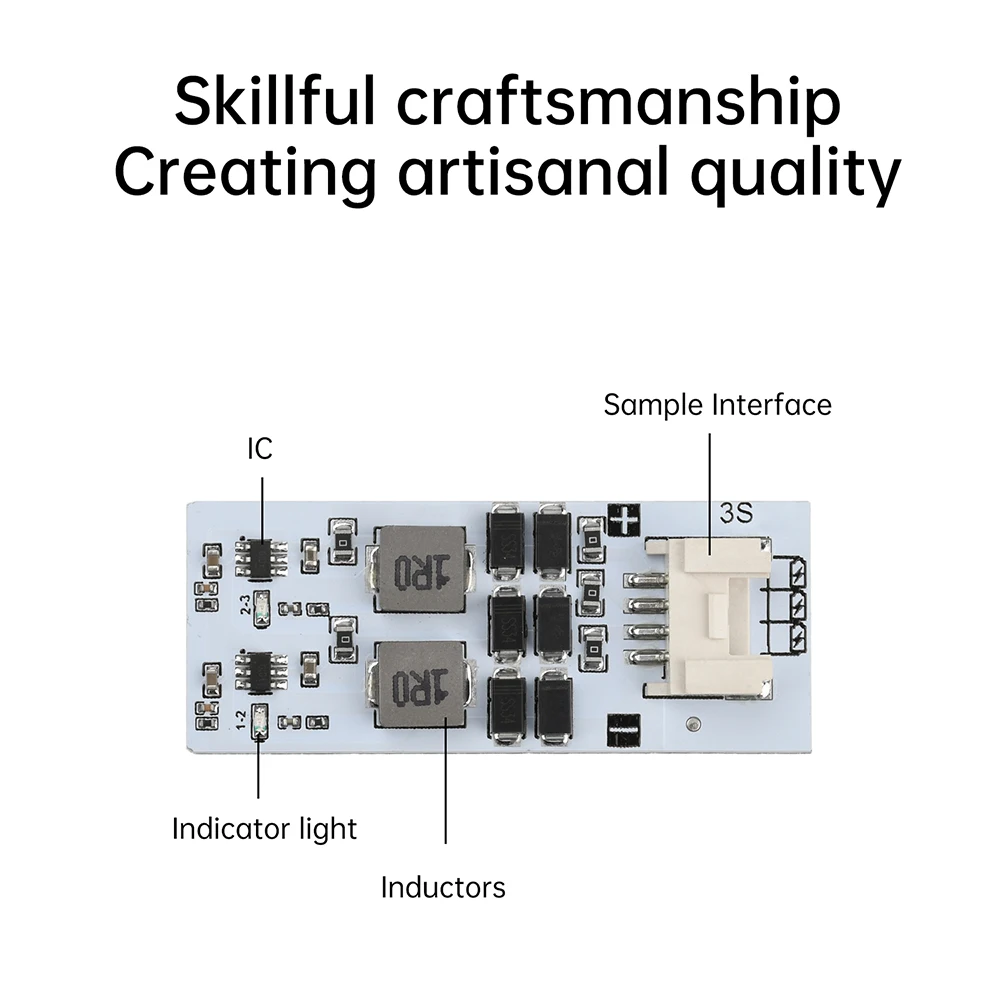

1. Inductive active equalization technology: adopting advanced inductive active equalization board, effectively balancing the voltage of the battery cells, improving the overall performance and life of the battery pack.

2. High-efficiency energy transfer: realizes high-efficiency energy transfer, reduces energy loss, and ensures that the battery maintains high-efficiency operation during charging and discharging.

3. Compatible with multiple types of batteries: support for lithium ternary batteries, lithium iron phosphate batteries and sodium ion batteries and other battery types to meet the needs of different application scenarios.

4. Used in the battery PACK of power exchange cabinet, electric balance car, outdoor energy storage, small household appliances, etc., and can also be used for battery equalization, repair and restoration.

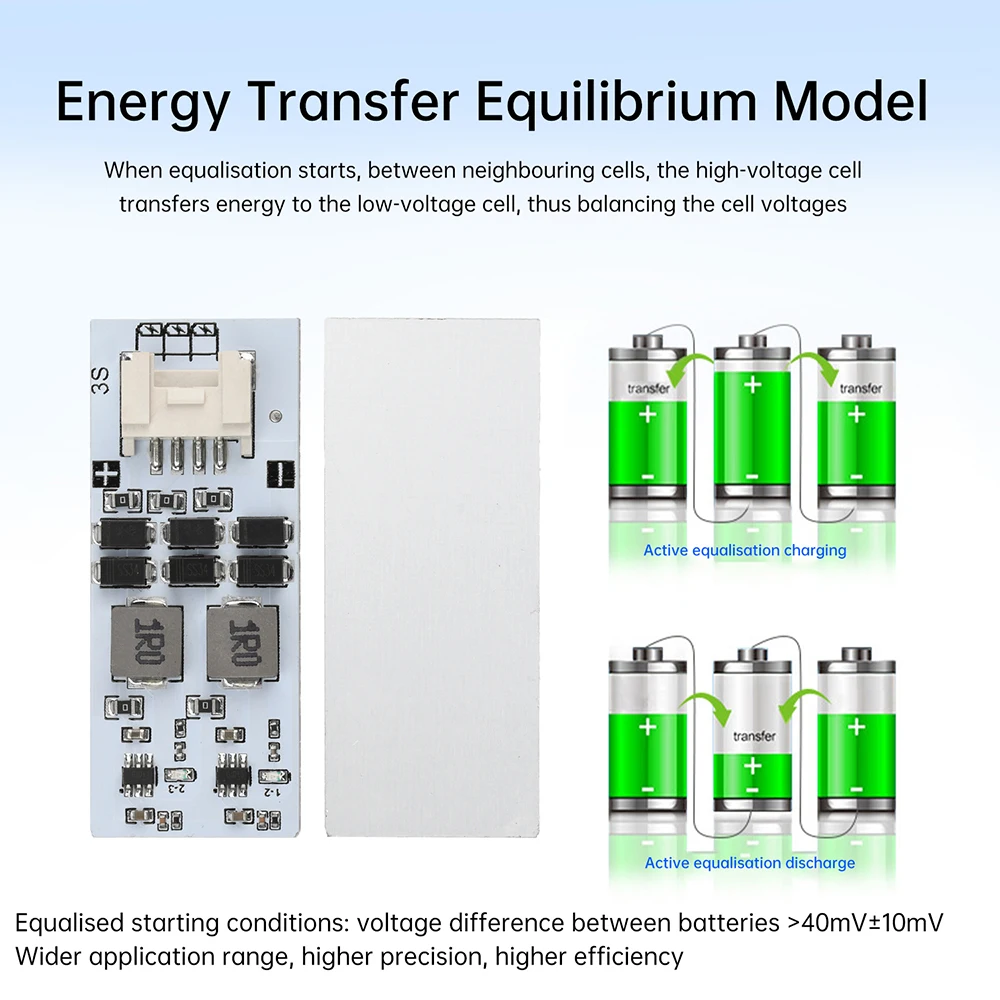

5. Mainly play the role of repairing the battery pack voltage, restoring the battery pack capacity and extending the battery pack life; no external power supply is required; it relies on the internal energy transfer of the battery to realize adjacent equalization.

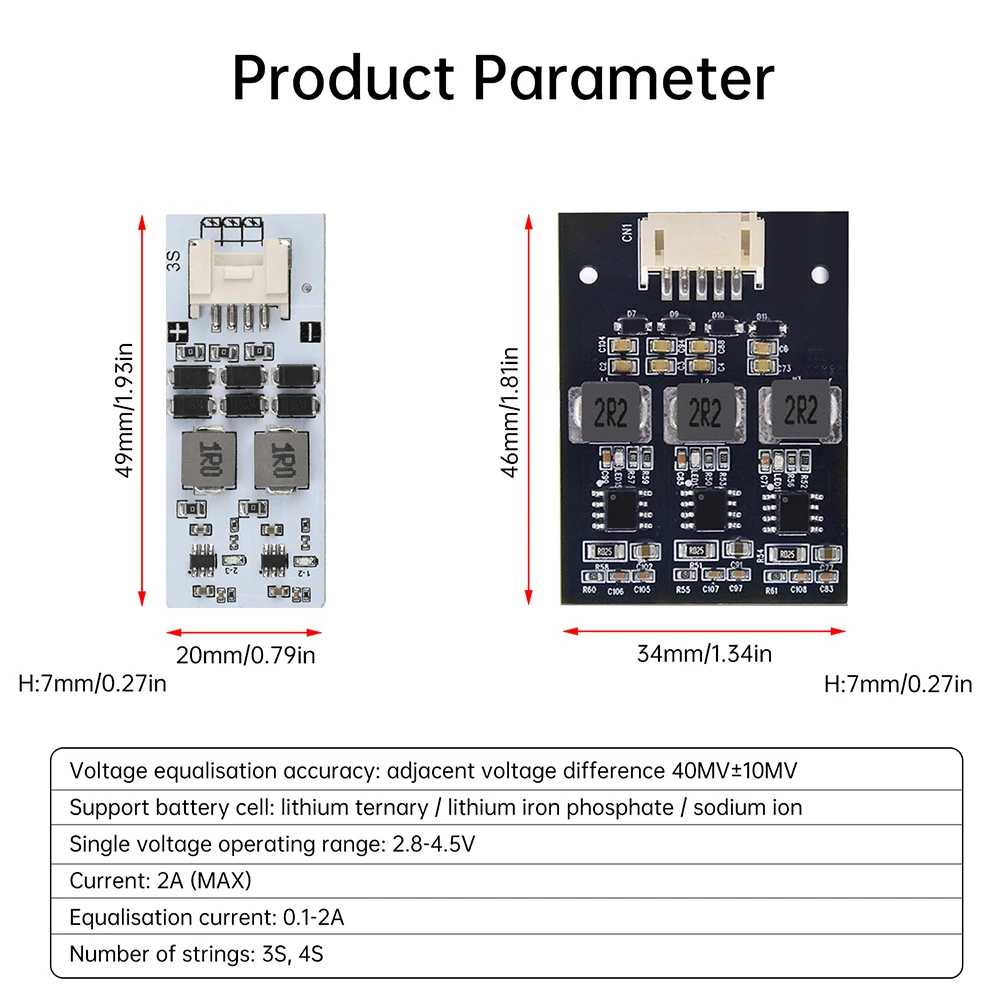

Parameter:

Single unit voltage operating range: 2.8-4.5V

Voltage equalization accuracy: adjacent voltage difference 40MVﾱ10MV

Equalization current: 0.1-2A

Support battery cell: Li-ion ternary / lithium iron phosphate / sodium ion

Number of strings: 3S, 4S

Current: 2A (MAX)

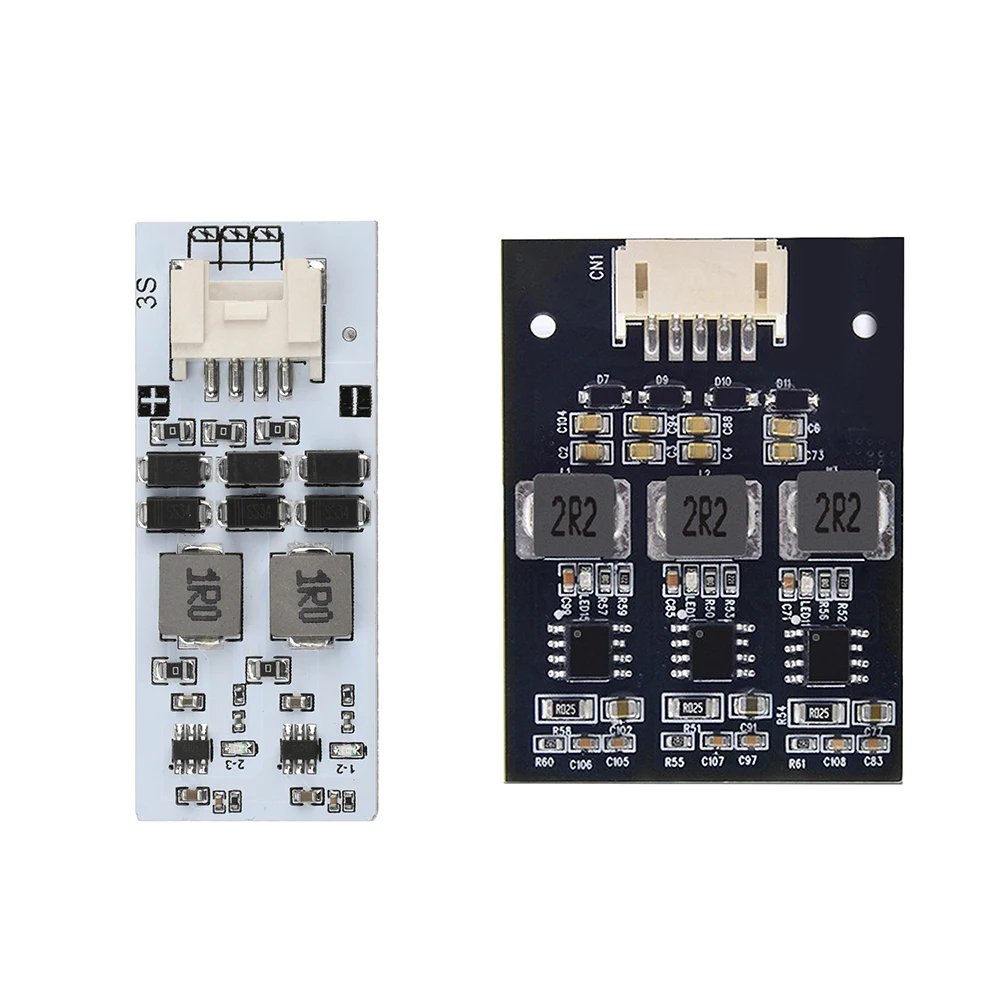

Product Size:

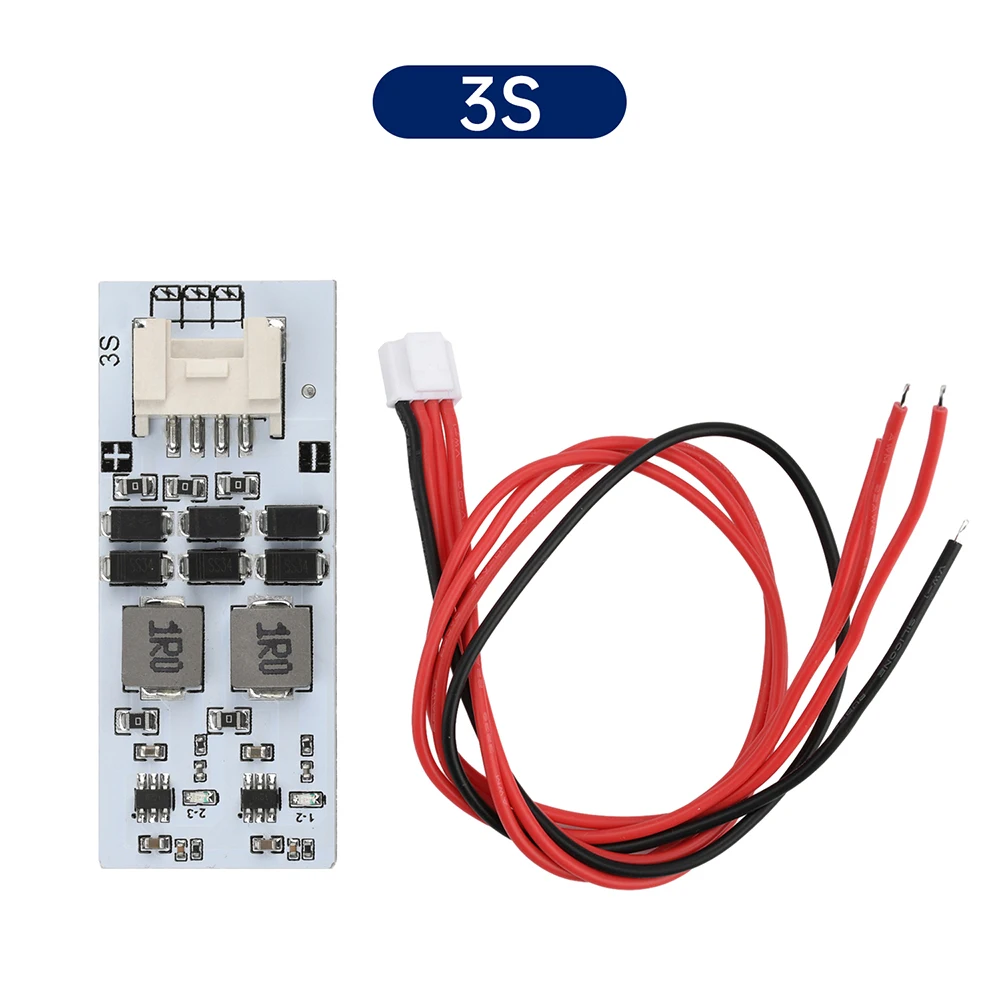

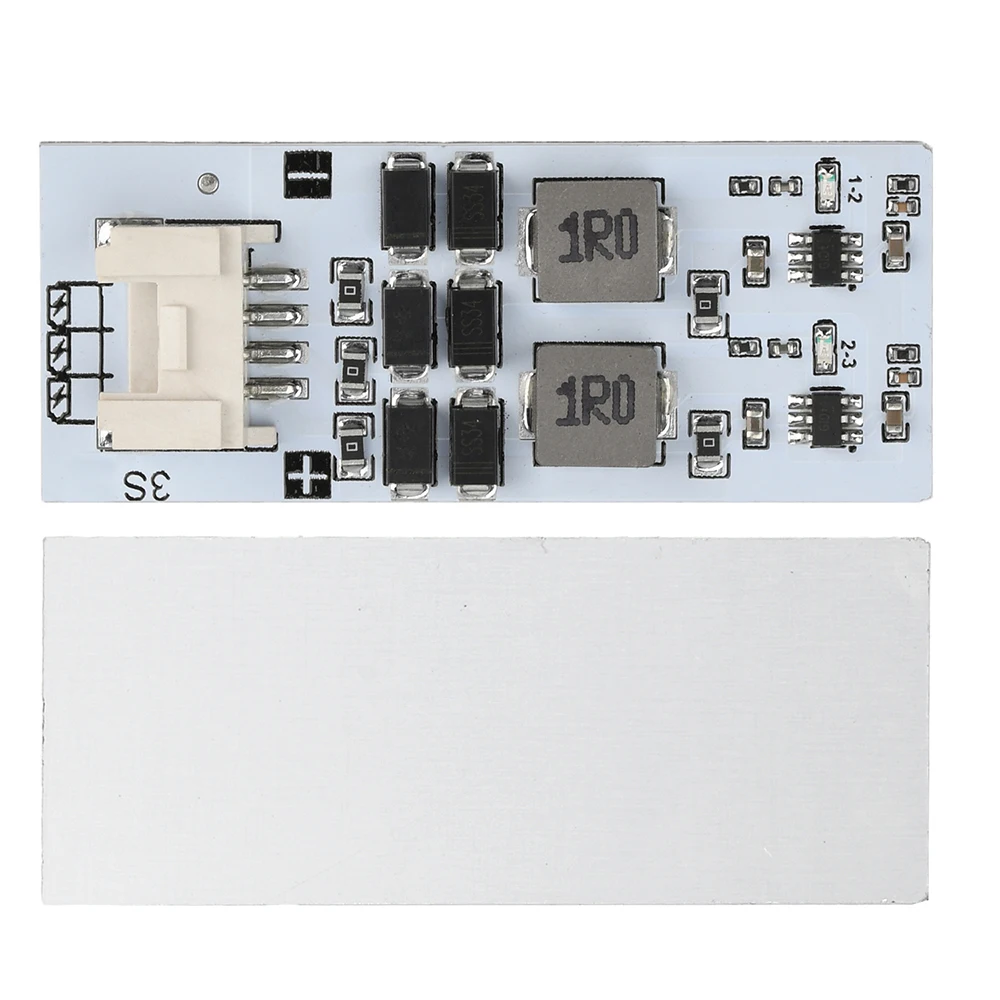

3S: 49*20*7mm

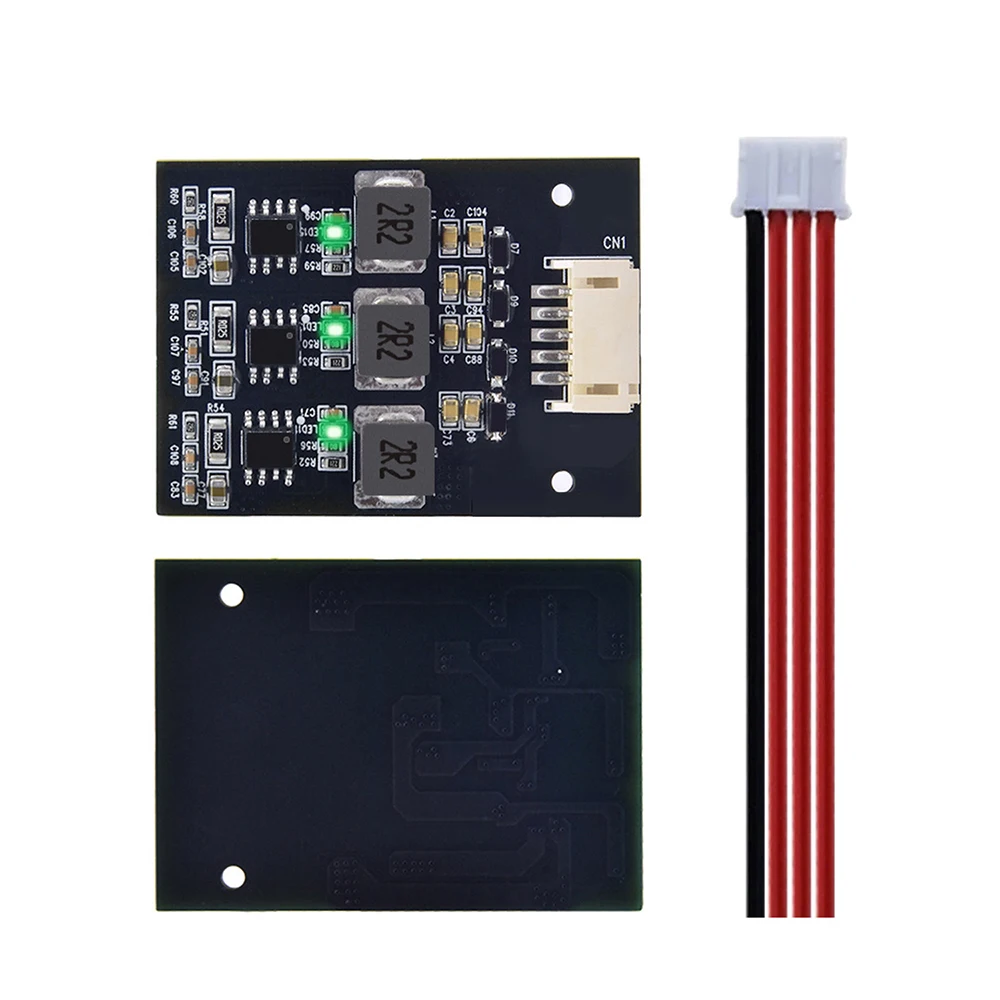

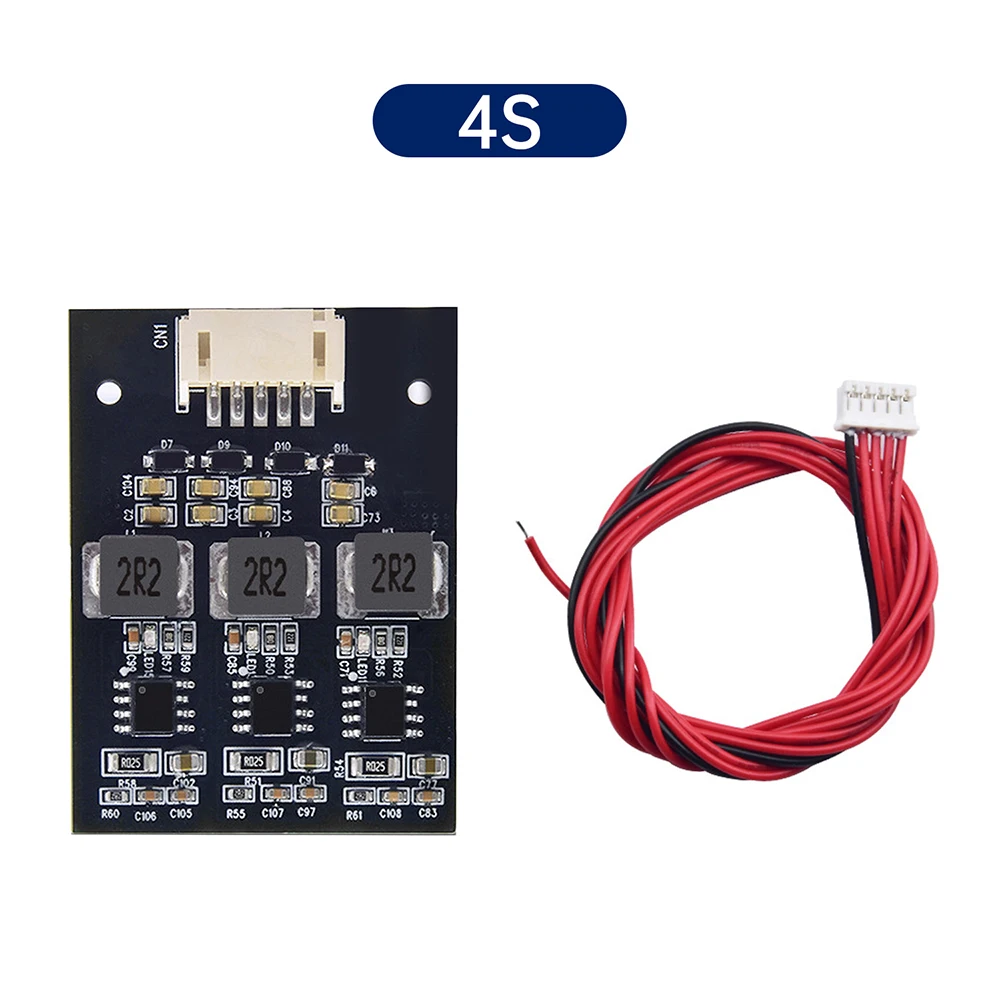

4S: 46*34*7mm

Package include:

Li-ion battery protection board*1

Cable *1
