Product Description

1,Product overview

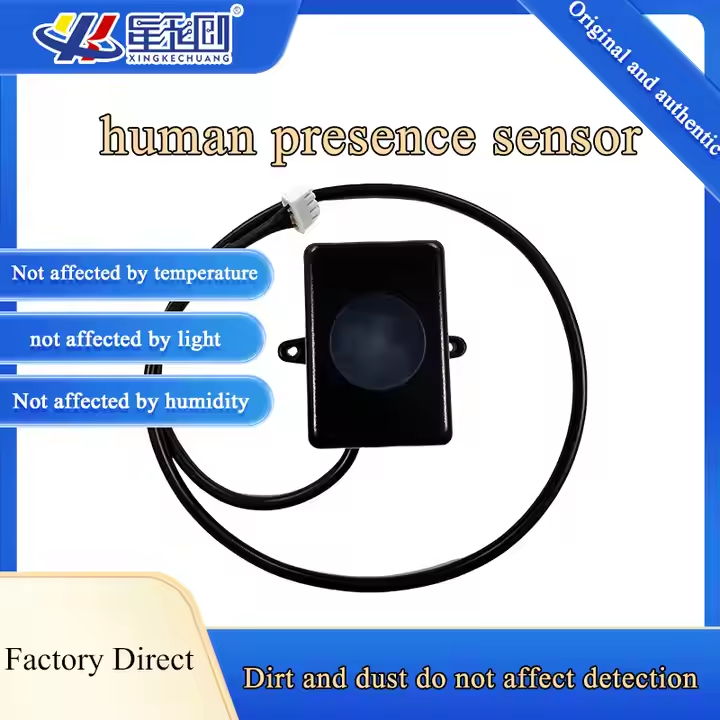

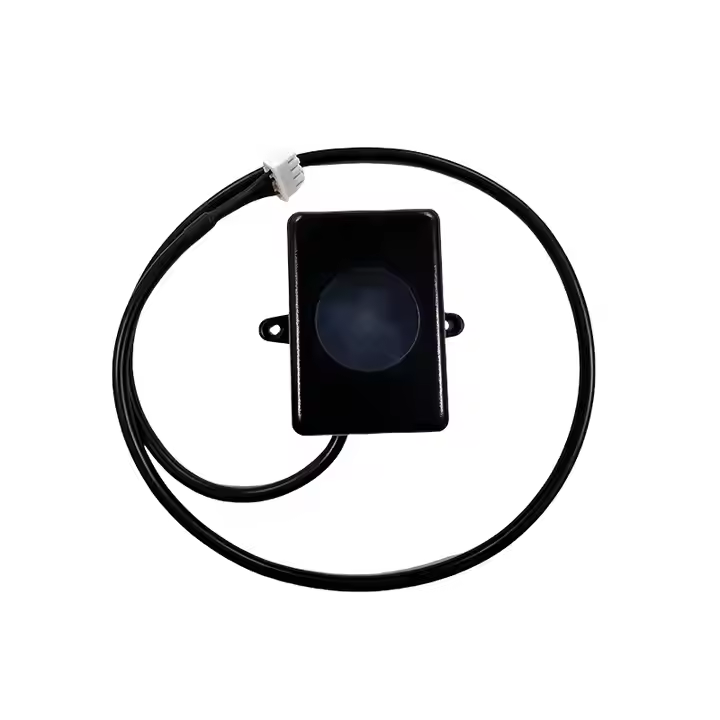

XKC-LD002 is mainly used in indoor scenes to perceive whether there is movement or micro human body in the

area, and output the detection results in real time. The maximum induction distance can reach 3 meters (the detection

distance is related to the sensor installation direction), and the distance resolution is 5cm. Can be widely used in various

scenarios of AIoT, often used in human body induction light control, advertising screen and other devices of human body

induction wake up, life safety protection, intelligent home appliances, intelligent security, corridor detection and so on.

2,Product features

1. In addition to the movement of the human body induction sensitive, for the traditional scheme can not identify the

micro human body can also be sensitive induction;

2. Have good environmental adaptability, the induction effect is not affected by the temperature, brightness, humidity

and light fluctuations and other surrounding environment;

3. Not easy to be affected by dirt, dust and other cover interference;

4. Can pass through the glass, plastic, ceramic, acrylic, rubber, wood board and other non-metallic materials;

5. The maximum induction distance is up to 3 meters;

6. Support the hanging roof, hanging the wall and other installation methods;

7. 57~64GHz ISM frequency band, can pass the FCC and CE spectrum regulatory certification;

3,Operational principle

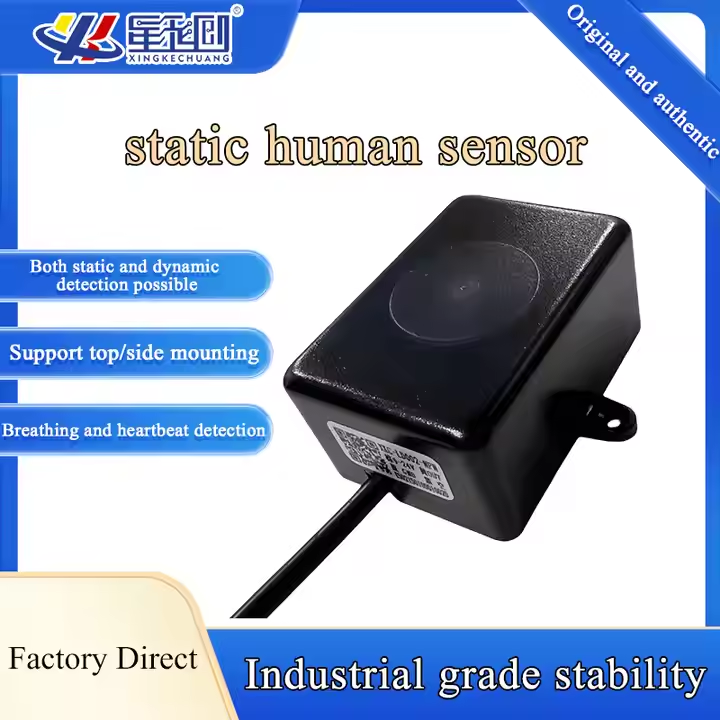

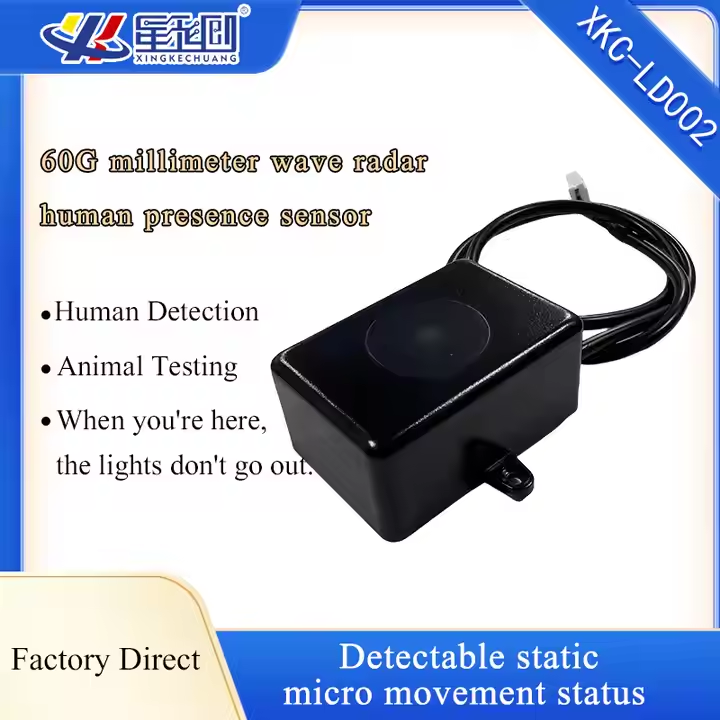

The XKC-LD002 is a highly sensitive 57~64GHz human presence state sensor. Its working principle is to use

FMCW frequency modulation continuous wave to detect the human body target in the set space. Combined with radar

signal processing and accurate human body sensing algorithm, it can realize the highly sensitive human existence state

sensing, can identify the human body in the motion and micro-motion state, and can calculate the distance of the target

and other auxiliary information.
